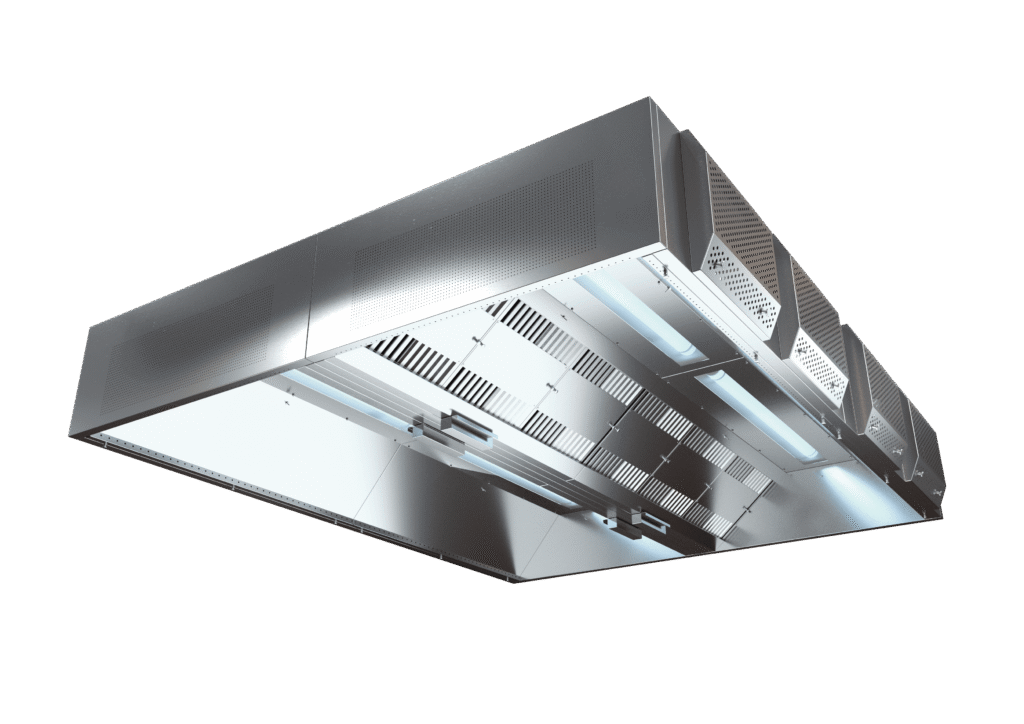

OCPAN KEMS ® hood
Central supply and exhaust hood with a horizontal capture jet and vertical three-sided JETstream™ air curtain. Equipped with removable displacement air diffusers and a two-stage adaptive filtration system with high-efficiency multicyclone filters.
The most complete island hood. Besides the JETstream™ curtain, its canopy has displacement air diffusers: fresh air flows out at low velocity in three directions, straight into the work zone, without draughts and without mixing with the fumes. The amount of air directed at the cook is adjusted on the front of the hood, and the diffusers can be removed for washing. A good choice over an island with a high heat load (grills, fryers, tilting pans) where supply air is hard to deliver otherwise.
Main features
- High-efficiency multicyclone filters
- Built-in damper in exhaust chambers for airflow regulation
- Built-in pressure ports for measuring and regulating supply and exhaust air
- Fresh air supply to the kitchen area
- Vertical JetStreamTM capture beam
- Vertical JetStreamTM capture beam
- Built-in IP65 lighting
- Mounting system for enclosure above the hood
- Capability to convert to another hood type
High-efficiency multicyclone filters
Consist of cylindrical multicyclone filters and progressive mesh filters with a total filtration efficiency of at least 99% for particles of 6 µm, 87% for 4 µm, and 73% for 3 µm, with constant airflow resistance up to 120 Pa. Filters are angled for draining separated grease particles, preventing grease buildup inside the filter. Dishwasher safe for commercial use.
Fresh air supply to the kitchen area
Built-in pressure ports for measuring and regulating performance
JetStreamTM horizontal capture beam
Vertical JetStreamTM capture beam
Jet at the bottom of the supply chamber with adjustable strength or complete closure, plus additional vertical jets in side panels for complete four-sided sealing of the insular hood, preventing hot vapors from escaping the hood’s outline.
Built-in IP65 lighting
Hood features built-in lighting with high IP65 protection. Lamps have a color temperature of 4000K and a high color rendering index, ensuring accurate color reproduction, which is crucial during food preparation.
Mounting system for enclosure above the hood
Built-in system for mounting stainless steel enclosure to the ceiling using screws attached to the factory rim on the hood roof. Installation without visible external screws for high aesthetic quality.
Capability to convert to another hood type
KEMS® system hood with the option for later expansion or conversion to another hood type, e.g., condensate or wall-mounted, without modifying the hood’s structure or using specialized tools.
