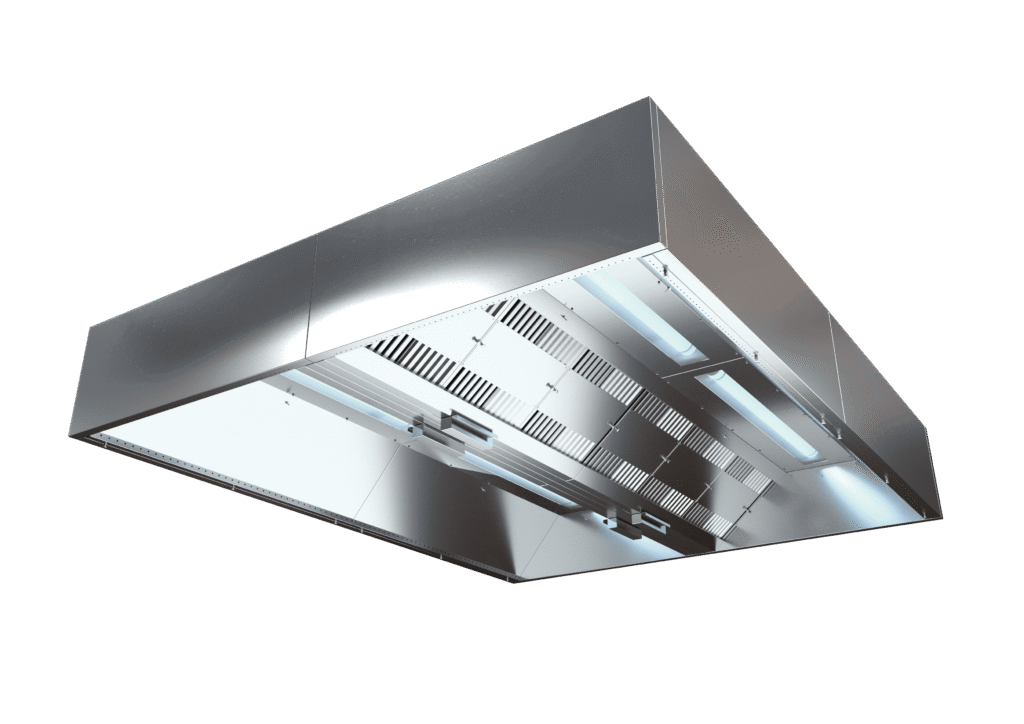

OCPA KEMS® hood
Central extract hood with horizontal capture jet and vertical JETstream™ air curtain. Equipped with a two-stage adaptive filtration system with high-efficiency multicyclone filters.
Island hood with a JETstream™ air curtain. Nozzles on the side opposite the filters form an air barrier in the canopy that stabilises the thermal plume and directs it to the filters. The hood captures fumes just as effectively with up to 20% less exhaust, which means smaller fans and less air to heat in winter. Supply air to the kitchen must be provided separately. If it should be built into the hood, choose the OCPAN.
Main features
- High-efficiency multicyclone filters
- Built-in damper in exhaust chambers for airflow regulation
- Built-in pressure ports for measuring and regulating supply and exhaust air
- Vertical JetStreamTM capture beam
- Vertical JetStreamTM capture beam
- Built-in IP65 lighting
- Mounting system for enclosure above the hood
- Capability to convert to another hood type
High-efficiency multicyclone filters
Consist of cylindrical multicyclone filters and progressive mesh filters with a total filtration efficiency of at least 99% for particles of 6 µm, 87% for 4 µm, and 73% for 3 µm, with constant airflow resistance up to 120 Pa. Filters are angled for draining separated grease particles, preventing grease buildup inside the filter. Dishwasher safe for commercial use.
Built-in pressure ports for measuring and regulating performance
Pressure ports in supply and exhaust chambers allows measurement and precise regulation of airflow in each hood chamber.
JetStreamTM horizontal capture beam
Loop in the lower part of the air chamber without interruptions to keep fumes from above heating devices inside the hood.
Vertical JetStreamTM capture beam
A beam in the lower part of the air chamber with the possibility of adjusting its strength or its full closure, in order to prevent the vapours from coming out of the hood outline.
Built-in IP65 lighting
Hood features built-in lighting with high IP65 protection. Lamps have a color temperature of 4000K and a high color rendering index, ensuring accurate color reproduction, which is crucial during food preparation
Mounting system for enclosure above the hood
Built-in system for mounting stainless steel enclosure to the ceiling using screws attached to the factory rim on the hood roof. Installation without visible external screws for high aesthetic quality.
Capability to convert to another hood type
KEMS® system hood with the option for later expansion or conversion to another hood type, e.g., condensate or wall-mounted, without modifying the hood’s structure or using specialized tools.
